Wave rib conveyor belt

Wave rib covneyor belt for Recycling industry

Wave rib conveyor belt, the installation speed is fast, the conveying inclination angle is large, the floor space is small, the civil construction investment is reduced, the arrangement is flexible, the maintenance amount is small, and t

Wave rib conveyor belt ring large angle rib conveyor belt
Wave rib conveyor belt ring large angle rib conveyor belt

he energy consumption is low. The Wave rib conveyor belt is composed of a base belt, a rib, and a horizontal partition. The ribs prevent the material from slipping and falling. In order to facilitate the winding around the drum, the flange is designed to be corrugated; the function of the diaphragm is to support the material, and in order to achieve large inclination, the T-type TC is used. The courrugated sidewall and the cleats are connected to the base belt by secondary vulcanization and have a high joint strength. Product features (common type large angle wave rib conveyor belt):

1. Increase the conveying angle (30~90 degrees);
2. Small footprint and low investment;
3. The conveying volume is large and the lifting height is higher;
4. Smooth transition from horizontal to inclined (or vertical);
5. It is suitable for conveying powdery, granular, small block, paste and liquid materials that are easy to be scattered;
6. Low energy consumption, simple structure, high belt strength and long service life.

PRODUCT INTRODUCTION
Lip height (mm) 60 80 120 160 200 240 300 400
Lip quality (Kg/m) 1.1 1.3 2.9 4.6 5 7 12 15
Baffle height (mm) 40 75 110 140 180 220 280 360
Baffle quality (Kg/m) 1.2 1.4 2.8 3.5 5.4 7.5 12 15
Wave rib conveyor belt ring large angle rib conveyor belt
Corrugated sidewall conveyor for Stone quarries

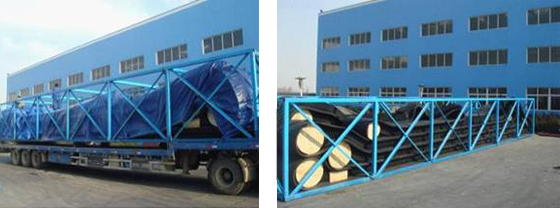

Handling Of Steel Crates
When handling the steel crates it is important to always lift the crate from underneath by straps or by chains ,do not lift the crates at any other point as damage may result.

Storage Condition
Sidewall belt should be stored in a dry, away form direct sunlight in hot or humid environment of the premises, Drastic temperature change for long time can make the adverse effects on belting, The ideal storage environment for the temperature range is -5°C-30°C. It is easy to harden or curing the belt under long time exposure. After installation, there would be mis-tracking problem of belt with the influence of the overall use of belt application effects and life.
